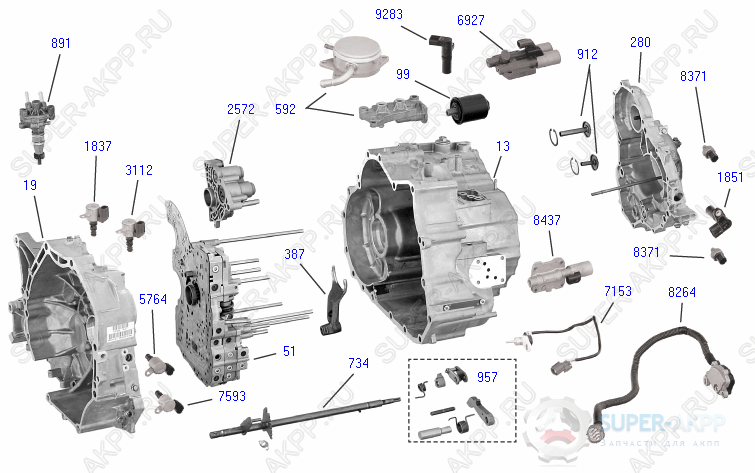

Case 2 wheel drive

Если Вы не нашли нужную Вам запчасть или трансмиссию, позвоните по телефону +7(925)9341045 и мы найдем ее для Вас.

13
	Код	Наименование	Цена
13		HGF 13A-CR	CASE CORE	CASE CORE (HGF 13A-CR): Запросить цену
Core ChargeBolt holes for gasket surface = 17.Thickness at case where counter shaft bearing rides = 20.5mm.Counter shaft bearing = HGF 9486A, 75mm O.D. X 20.5mm Thick.Bracket for warmer plate = Yes.From top of case gasket surface to bottomof differential bearing pocket where differential race rides = 2.23-56.7mm.Has boss next to vent tube = No.FWD or AWD = FWD.Differential bearing race pocket for case side inside diameter is 81mm.SEE PICTURE...
13		HGF 13M-CR	CASE CORE	CASE CORE (HGF 13M-CR): Запросить цену
Core ChargeBolt holes for gasket surface = 17.Thickness at case where counter shaft bearing rides = 25.52mm.Counter shaft bearing = HGF 9486C, 81mm O.D. X 25.52mm Thick.Bracket for warmer plate = No.From top of case gasket surface to bottomof differential bearing pocket where differential race rides = 2.23-56.7mm.Has boss next to vent tube = Yes.FWD or AWD = FWD.Differential bearing race pocket for case side inside diameter is 81mm.SEE PICTURE...
13		HGF 13B-CR	CASE CORE	CASE CORE (HGF 13B-CR): Запросить цену
Core ChargeBolt holes for gasket surface = 17.Thickness at case where counter shaft bearing rides = 20.5mm.Counter shaft bearing = HGF 9486A, 75mm O.D. X 20.5mm Thick.Bracket for warmer plate = No.From top of case gasket surface to bottomof differential bearing pocket where differential race rides = 2.23-56.7mm.Has boss next to vent tube = No.FWD or AWD = FWD.Differential bearing race pocket for case side inside diameter is 81mm.SEE PICTURE...
13		HGF 13P-CR	CASE CORE	CASE CORE (HGF 13P-CR): Запросить цену
Core ChargeBolt holes for gasket surface = 18.Thickness at case where counter shaft bearing rides = 25.52mm.Counter shaft bearing = HGF 9486C, 81mm O.D. X 25.52mm Thick.Bracket for warmer plate = No.From top of case gasket surface to bottomof differential bearing pocket where differential race rides = 2.82-71.8mm.Has boss next to vent tube = Yes.FWD or AWD = FWD.Differential bearing race pocket for case side inside diameter is 85mm.SEE PICTURE...
13		HGF 13C-CR	CASE CORE	CASE CORE (HGF 13C-CR): Запросить цену
CORE CHARGE.Bolt holes for gasket surface = 20.Thickness at case where counter shaft bearing rides = 20.5mm.Counter shaft bearing = HGF 9486A, 75mm O.D. X 20.5mm Thick.Bracket for warmer plate = No.From top of case gasket surface to bottomof differential bearing pocket where differential race rides = 2.23-56.7mm.Has boss next to vent tube = No.FWD or AWD = AWD.Differential bearing race pocket for case side inside diameter is ??mm.SEE PICTURE...
13		HGF 13Q-CR	CASE CORE	CASE CORE (HGF 13Q-CR): Запросить цену
Core ChargeBolt holes for gasket surface = 20.Thickness at case where counter shaft bearing rides = 25.52mm.Counter shaft bearing = HGF 9486C, 81mm O.D. X 25.52mm Thick.Bracket for warmer plate = No.From top of case gasket surface to bottomof differential bearing pocket where differential race rides = 2.82-71.8mm.Has boss next to vent tube = No.FWD or AWD = AWD.Differential bearing race pocket for case side inside diameter is 85mm.SEE PICTURE...
13		HGF 13D-CR	CASE CORE	CASE CORE (HGF 13D-CR): Запросить цену
Core ChargeBolt holes for gasket surface = 17.Thickness at case where counter shaft bearing rides = 20.5mm.Counter shaft bearing = HGF 9486A, 75mm O.D. X 20.5mm Thick.Bracket for warmer plate = No.From top of case gasket surface to bottomof differential bearing pocket where differential race rides = 2.23-56.7mm.Has boss next to vent tube = Yes.FWD or AWD = FWD.Differential bearing race pocket for case side inside diameter is 81mm.SEE PICTURE...
13		HGF 13S-CR	CASE CORE	CASE CORE (HGF 13S-CR): Запросить цену
Core ChargeBolt holes for gasket surface = 17.Thickness at case where counter shaft bearing rides = 25.52mm.Counter shaft bearing = HGF 9486C, 81mm O.D. X 25.52mm Thick.Bracket for warmer plate = No.From top of case gasket surface to bottomof differential bearing pocket where differential race rides = 2.23-56.7mm.Has boss next to vent tube = Yes.FWD or AWD = FWD.Differential bearing race pocket for case side inside diameter is 85mm.SEE PICTURE...
13		HGF 13E-CR	CASE CORE	CASE CORE (HGF 13E-CR): Запросить цену
Core ChargeBolt holes for gasket surface = ??.Thickness at case where counter shaft bearing rides = 21.46mm.Counter shaft bearing = HGF 9486B, 81mm O.D. X 21.46mm Thick.Bracket for warmer plate = Yes.From top of case gasket surface to bottomof differential bearing pocket where differential race rides = ???-???mm.Has boss next to vent tube = No.FWD or AWD = FWD...
13		HGF 13T-CR	CASE CORE	CASE CORE (HGF 13T-CR): Запросить цену
Core ChargeBolt holes for gasket surface = 20.Thickness at case where counter shaft bearing rides = 21.46mm.Counter shaft bearing = HGF 9486B, 81mm O.D. X 21.46mm Thick.Bracket for warmer plate = No.From top of case gasket surface to bottomof differential bearing pocket where differential race rides = 2.82-71.8mm.Has boss next to vent tube = No.FWD or AWD = AWD.Differential bearing race pocket for case side inside diameter is 85mm.SEE PICTURE...
13		HGF 13F-CR	CASE CORE	CASE CORE (HGF 13F-CR): Запросить цену
Core ChargeBolt holes for gasket surface = 17.Thickness at case where counter shaft bearing rides = 21.46mm.Counter shaft bearing = HGF 9486B, 81mm O.D. X 21.46mm Thick.Bracket for warmer plate = No.From top of case gasket surface to bottomof differential bearing pocket where differential race rides = 2.23-56.7mm.Has boss next to vent tube = No.FWD or AWD = FWD.Differential bearing race pocket for case side inside diameter is 81mm.SEE PICTURE...
13		HGF 13G-CR	CASE CORE	CASE CORE (HGF 13G-CR): Запросить цену
Core ChargeBolt holes for gasket surface = 17.Thickness at case where counter shaft bearing rides = 21.46mm.Counter shaft bearing = HGF 9486B, 81mm O.D. X 21.46mm Thick.Bracket for warmer plate = No.From top of case gasket surface to bottomof differential bearing pocket where differential race rides = 2.23-56.7mm.Has boss next to vent tube = Yes.FWD or AWD = FWD.Differential bearing race pocket for case side inside diameter is 81mm.SEE PICTURE...
13		HGF 13H-CR	CASE CORE	CASE CORE (HGF 13H-CR): Запросить цену
Core ChargeBolt holes for gasket surface = 20.Thickness at case where counter shaft bearing rides = 20.5mm.Counter shaft bearing = HGF 9486A, 75mm O.D. X 20.5mm Thick.Bracket for warmer plate = Yes.From top of case gasket surface to bottomof differential bearing pocket where differential race rides = 2.23-56.7mm.Has boss next to vent tube = No.FWD or AWD = AWD.Differential bearing race pocket for case side inside diameter is ??mm.SEE PICTURE...
13		HGF 13J-CR	CASE CORE	CASE CORE (HGF 13J-CR): Запросить цену
Core ChargeBolt holes for gasket surface = 20.Thickness at case where counter shaft bearing rides = 21.46mm.Counter shaft bearing = HGF 9486B, 81mm O.D. X 21.46mm Thick.Bracket for warmer plate = No.From top of case gasket surface to bottomof differential bearing pocket where differential race rides = 2.82-71.8mm.Has boss next to vent tube = No.FWD or AWD = AWD.Differential bearing race pocket for case side inside diameter is 81mm.SEE PICTURE...
13		HGF 13K-CR	CASE CORE	CASE CORE (HGF 13K-CR): Запросить цену
Core ChargeFWD.Bolt holes for gasket surface = 18.Thickness at case where counter shaft bearing rides = 21.46mm.Counter shaft bearing = HGF 9486B, 81mm O.D. X 21.46mm Thick.Bracket for warmer plate = No.From top of case gasket surface to bottomof differential bearing pocket where differential race rides = 2.82-71.8mm.Has boss next to vent tube = Yes.FWD or AWD = FWD.Differential bearing race pocket for case side inside diameter is 85mm.SEE PICTURE...
13		HGF 13L-CR	CASE CORE	CASE CORE (HGF 13L-CR): Запросить цену
Core ChargeBolt holes for gasket surface = 20.Thickness at case where counter shaft bearing rides = 20.5mm.Counter shaft bearing = HGF 9486A, 75mm O.D. X 20.5mm Thick.Bracket for warmer plate = No.From top of case gasket surface to bottomof differential bearing pocket where differential race rides = 2.82-71.8mm.Has boss next to vent tube = No.FWD or AWD = AWD.Differential bearing race pocket for case side inside diameter is 81mm.SEE PICTURE...
13		HGF 13-CR	CASE, CORE	CASE, CORE (HGF 13-CR): Запросить цену
2 wheel drive.Warmer plate attachment bosses.Uses counter shaft bearing 9486A with 75mm O.D...
13		HGF 13A	Корпус	Корпус (HGF 13A): Запросить цену
Bolt holes for gasket surface = 17.Thickness at case where counter shaft bearing rides = 20.5mm.Counter shaft bearing = HGF 9486A, 75mm O.D. X 20.5mm Thick.Bracket for warmer plate = Yes.From top of case gasket surface to bottomof differential bearing pocket where differential race rides = 2.23-56.7mm.Has boss next to vent tube = No.FWD or AWD = FWD.Differential bearing race pocket for case side inside diameter is 81mm.SEE PICTURE...
13		HGF 13B	Корпус	Корпус (HGF 13B): Запросить цену
Bolt holes for gasket surface = 17.Thickness at case where counter shaft bearing rides = 20.5mm.Counter shaft bearing = HGF 9486A, 75mm O.D. X 20.5mm Thick.Bracket for warmer plate = No.From top of case gasket surface to bottomof differential bearing pocket where differential race rides = 2.23-56.7mm.Has boss next to vent tube = No.FWD or AWD = FWD.Differential bearing race pocket for case side inside diameter is 81mm.SEE PICTURE...
13		HGF 13C	Корпус MGHA 4WD MDX	Корпус MGHA 4WD MDX (HGF 13C): Запросить цену
Маркировка: PGH#1...
13		HGF 13M	КОРПУС АКПП	КОРПУС АКПП (HGF 13M): Запросить цену
Bolt holes for gasket surface = 17.Thickness at case where counter shaft bearing rides = 25.52mm.Counter shaft bearing = HGF 9486C, 81mm O.D. X 25.52mm Thick.Bracket for warmer plate = No.From top of case gasket surface to bottomof differential bearing pocket where differential race rides = 2.23-56.7mm.Has boss next to vent tube = Yes.FWD or AWD = FWD.Differential bearing race pocket for case side inside diameter is 81mm.SEE PICTURE...
13		HGF 13P	КОРПУС АКПП	КОРПУС АКПП (HGF 13P): Запросить цену
Bolt holes for gasket surface = 18.Thickness at case where counter shaft bearing rides = 25.52mm.Counter shaft bearing = HGF 9486C, 81mm O.D. X 25.52mm Thick.Bracket for warmer plate = No.From top of case gasket surface to bottomof differential bearing pocket where differential race rides = 2.82-71.8mm.Has boss next to vent tube = Yes.FWD or AWD = FWD.Differential bearing race pocket for case side inside diameter is 85mm.SEE PICTURE...
13		HGF 13Q	КОРПУС АКПП	КОРПУС АКПП (HGF 13Q): Запросить цену
Bolt holes for gasket surface = 20.Thickness at case where counter shaft bearing rides = 25.52mm.Counter shaft bearing = HGF 9486C, 81mm O.D. X 25.52mm Thick.Bracket for warmer plate = No.From top of case gasket surface to bottomof differential bearing pocket where differential race rides = 2.82-71.8mm.Has boss next to vent tube = No.FWD or AWD = AWD.Differential bearing race pocket for case side inside diameter is 85mm.SEE PICTURE...
13		HGF 13D	КОРПУС АКПП	КОРПУС АКПП (HGF 13D): Запросить цену
Bolt holes for gasket surface = 17.Thickness at case where counter shaft bearing rides = 20.5mm.Counter shaft bearing = HGF 9486A, 75mm O.D. X 20.5mm Thick.Bracket for warmer plate = No.From top of case gasket surface to bottomof differential bearing pocket where differential race rides = 2.23-56.7mm.Has boss next to vent tube = Yes.FWD or AWD = FWD.Differential bearing race pocket for case side inside diameter is 81mm.SEE PICTURE...
13		HGF 13S	КОРПУС АКПП	КОРПУС АКПП (HGF 13S): Запросить цену
Bolt holes for gasket surface = 17.Thickness at case where counter shaft bearing rides = 25.52mm.Counter shaft bearing = HGF 9486C, 81mm O.D. X 25.52mm Thick.Bracket for warmer plate = No.From top of case gasket surface to bottomof differential bearing pocket where differential race rides = 2.23-56.7mm.Has boss next to vent tube = Yes.FWD or AWD = FWD.Differential bearing race pocket for case side inside diameter is 85mm.SEE PICTURE...
13		HGF 13E	КОРПУС АКПП	КОРПУС АКПП (HGF 13E): Запросить цену
Bolt holes for gasket surface = ??.Thickness at case where counter shaft bearing rides = 21.46mm.Counter shaft bearing = HGF 9486B, 81mm O.D. X 21.46mm Thick.Bracket for warmer plate = Yes.From top of case gasket surface to bottomof differential bearing pocket where differential race rides = ???-???mm.Has boss next to vent tube = No.FWD or AWD = FWD...
13		HGF 13T	КОРПУС АКПП	КОРПУС АКПП (HGF 13T): Запросить цену
Bolt holes for gasket surface = 20.Thickness at case where counter shaft bearing rides = 21.46mm.Counter shaft bearing = HGF 9486B, 81mm O.D. X 21.46mm Thick.Bracket for warmer plate = No.From top of case gasket surface to bottomof differential bearing pocket where differential race rides = 2.82-71.8mm.Has boss next to vent tube = No.FWD or AWD = AWD.Differential bearing race pocket for case side inside diameter is 85mm.SEE PICTURE...
13		HGF 13F	КОРПУС АКПП	КОРПУС АКПП (HGF 13F): Запросить цену
Bolt holes for gasket surface = 17.Thickness at case where counter shaft bearing rides = 21.46mm.Counter shaft bearing = HGF 9486B, 81mm O.D. X 21.46mm Thick.Bracket for warmer plate = No.From top of case gasket surface to bottomof differential bearing pocket where differential race rides = 2.23-56.7mm.Has boss next to vent tube = No.FWD or AWD = FWD.Differential bearing race pocket for case side inside diameter is 81mm.SEE PICTURE...
13		HGF 13G	КОРПУС АКПП	КОРПУС АКПП (HGF 13G): Запросить цену
Bolt holes for gasket surface = 17.Thickness at case where counter shaft bearing rides = 21.46mm.Counter shaft bearing = HGF 9486B, 81mm O.D. X 21.46mm Thick.Bracket for warmer plate = No.From top of case gasket surface to bottomof differential bearing pocket where differential race rides = 2.23-56.7mm.Has boss next to vent tube = Yes.FWD or AWD = FWD.Differential bearing race pocket for case side inside diameter is 81mm.SEE PICTURE...
13		HGF 13H	КОРПУС АКПП	КОРПУС АКПП (HGF 13H): Запросить цену
Bolt holes for gasket surface = 20.Thickness at case where counter shaft bearing rides = 20.5mm.Counter shaft bearing = HGF 9486A, 75mm O.D. X 20.5mm Thick.Bracket for warmer plate = Yes.From top of case gasket surface to bottomof differential bearing pocket where differential race rides = 2.23-56.7mm.Has boss next to vent tube = No.FWD or AWD = AWD.Differential bearing race pocket for case side inside diameter is ??mm.SEE PICTURE...
13		HGF 13J	КОРПУС АКПП	КОРПУС АКПП (HGF 13J): Запросить цену
Bolt holes for gasket surface = 20.Thickness at case where counter shaft bearing rides = 21.46mm.Counter shaft bearing = HGF 9486B, 81mm O.D. X 21.46mm Thick.Bracket for warmer plate = No.From top of case gasket surface to bottomof differential bearing pocket where differential race rides = 2.82-71.8mm.Has boss next to vent tube = No.FWD or AWD = AWD.Differential bearing race pocket for case side inside diameter is 81mm.SEE PICTURE...
13		HGF 13K	КОРПУС АКПП	КОРПУС АКПП (HGF 13K): Запросить цену
Bolt holes for gasket surface = 18.Thickness at case where counter shaft bearing rides = 21.46mm.Counter shaft bearing = HGF 9486B, 81mm O.D. X 21.46mm Thick.Bracket for warmer plate = No.From top of case gasket surface to bottomof differential bearing pocket where differential race rides = 2.82-71.8mm.Has boss next to vent tube = Yes.FWD or AWD = FWD.Differential bearing race pocket for case side inside diameter is 85mm.SEE PICTURE...
13		HGF 13L	КОРПУС АКПП	КОРПУС АКПП (HGF 13L): Запросить цену
Bolt holes for gasket surface = 20.Thickness at case where counter shaft bearing rides = 20.5mm.Counter shaft bearing = HGF 9486A, 75mm O.D. X 20.5mm Thick.Bracket for warmer plate = No.From top of case gasket surface to bottomof differential bearing pocket where differential race rides = 2.82-71.8mm.Has boss next to vent tube = No.FWD or AWD = AWD.Differential bearing race pocket for case side inside diameter is 81mm.SEE PICTURE...

19
	Код	Наименование	Цена
19		HGF 19E-CR	CORE, CONVERTOR HOUSING	CORE, CONVERTOR HOUSING (HGF 19E-CR): Запросить цену
2 Wheel drive. (SEE PICTURE)No speedo hole...
19		HGF 19D	HOUSING, CONVERTOR	HOUSING, CONVERTOR (HGF 19D): Запросить цену
4 Wheel drive. (SEE PICTURE)Speedo hole not drilled through...
19		HGF 19E	HOUSING, CONVERTOR	HOUSING, CONVERTOR (HGF 19E): Запросить цену
2 Wheel drive. (SEE PICTURE)No speedo hole...
19		HGF 19E-R	HOUSING, CONVERTOR	HOUSING, CONVERTOR (HGF 19E-R): Запросить цену
2 Wheel drive. (SEE PICTURE)No speedo hole.Sleeved...
19		HGF 19-CR	HOUSING, CONVERTOR	HOUSING, CONVERTOR (HGF 19-CR): Запросить цену
2 Wheel drive. (SEE PICTURE)Speedo hole drilled through.Core..
19		HGF 19-R	HOUSING, CONVERTOR	HOUSING, CONVERTOR (HGF 19-R): Запросить цену
2 Wheel drive. (SEE PICTURE)Speedo hole drilled through.Sleeved..
19		HGF 19C	HOUSING, CONVERTOR	HOUSING, CONVERTOR (HGF 19C): Запросить цену
2 Wheel drive. (SEE PICTURE)Speedo hole not drilled through...
19		HGF 19A	Корпус (передняя часть)	Корпус (передняя часть) (HGF 19A): Запросить цену
2 Wheel drive. (SEE PICTURE)Speedo hole drilled through...
19		HGF 19B	Корпус MGHA 4WD MDX (передняя часть)	Корпус MGHA 4WD MDX (передняя часть) (HGF 19B): Запросить цену
Маркировка: PGV#1...

51
	Код	Наименование	Цена
51		HGF 51A	ПЛИТА КЛАПАНОВ (ГИДРОБЛОК)	ПЛИТА КЛАПАНОВ (ГИДРОБЛОК) (HGF 51A): Запросить цену
SEE PICTURE for orifice difference.Does not include accumulator body...

280
	Код	Наименование	Цена
280		HGF 280B	ЗАДНЯЯ КРЫШКА	ЗАДНЯЯ КРЫШКА (HGF 280B): Запросить цену
SEE PICTURE for bosses...
280		HGF 280A	Крышка корпуса задняя MGHA	Крышка корпуса задняя MGHA (HGF 280A): Запросить цену
Маркировка: P7W...

387
	Код	Наименование	Цена
387		HGF 387A	Вилка включения З/Х (P7Z) MGHA	Вилка включения З/Х (P7Z) MGHA (HGF 387A): Запросить цену
Расстояние между лапками - 62.8ММ.Проточка для фиксирующего шарика - ЕСТЬ.Маркировка: P7Z.Отверстие в вилке - ЕСТЬ.Оригинальный номер: 24111-P7W-000...

592
	Код	Наименование	Цена
592		HGF 592D	WARMER	WARMER (HGF 592D): Запросить цену
SEE PICTURE for difference.Warmer and aluminum plate...
592		HGF 592E	WARMER	WARMER (HGF 592E): Запросить цену
SEE PICTURE for difference.Aluminum plate only...
592		HGF 592F	WARMER	WARMER (HGF 592F): Запросить цену
SEE PICTURE for difference.Warmer only.No aluminum plate.Warmer is made of steel...
592		HGF 592B	Кронштейн фильтра системы охлаждения 2WD	Кронштейн фильтра системы охлаждения 2WD (HGF 592B): Запросить цену
СМОТРИ ФОТО...
592		HGF 592C	Кронштейн фильтра системы охлаждения 4WD MGHA	Кронштейн фильтра системы охлаждения 4WD MGHA (HGF 592C): Запросить цену
СМОТРИ ФОТО...
592		HGF 592A	Фильтр системы охлаждения 2WD	Фильтр системы охлаждения 2WD (HGF 592A): Запросить цену
СМОТРИ ФОТО...

734
	Код	Наименование	Цена
734		HGF 734A	Вал переключателя с рычагом MGHA	Вал переключателя с рычагом MGHA (HGF 734A): Запросить цену
Длина - 350ММ...

891
	Код	Наименование	Цена
891		HGF 891A	Шестерня ??T спидометра	Шестерня ??T спидометра (HGF 891A): Запросить цену
18 tooth...

912
	Код	Наименование	Цена
912		HGF 912A	Трубки задней крышки (комплект) MGHA	Трубки задней крышки (комплект) MGHA (HGF 912A): Запросить цену
123

957
	Код	Наименование	Цена
957		HGF 957A	Собачка паркинга (комплект) MGHA	Собачка паркинга (комплект) MGHA (HGF 957A): Запросить цену
123

1837
	Код	Наименование	Цена
1837		HGF 1837A	Соленоид SHIFT (переключения) MGHA 01-02г	Соленоид SHIFT (переключения) MGHA 01-02г (HGF 1837A): Запросить цену
Соленоидов - 1.Разьём - НА КОРПУСЕ (чёрный).Сопротивление - 15.5 ОМ.Отверстий - 1.Растояние между крайними отверстиями - НЕТ.Длина - 62ММ.Резиновых колец - 3.Оригинальный номер: 28400-P6H-003...

2572
	Код	Наименование	Цена
2572		HGF 2572A	Аккумуляторы MGHA	Аккумуляторы MGHA (HGF 2572A): Запросить цену
Маркировка: P7W...

6927
	Код	Наименование	Цена
6927		HGF 6927A	Соленоид EPC (давления) MGHA 01-02г	Соленоид EPC (давления) MGHA 01-02г (HGF 6927A): Запросить цену
Соленоидов - 2.Разьёмы - НА КОРПУСЕ (коричневый и чёрный).Сопротивление - 5.4 ОМ.Оригинальный номер: 28250-P6H-024...

7153
	Код	Наименование	Цена
7153		HGF 7153B	SWITCH, TEMPERATURE	SWITCH, TEMPERATURE (HGF 7153B): Запросить цену
Plastic tip...
7153		HGF 7153A	Датчик температуры MGHA	Датчик температуры MGHA (HGF 7153A): Запросить цену
Длина - 51ММ.Разьём - НА ПРОВОДКЕ СЕРЫЙ.Сопротивление - 1600 ОМ при 25 градусах...

8264
	Код	Наименование	Цена
8264		HGF 8264B	SWITCH, NEUTRAL SAFETY	SWITCH, NEUTRAL SAFETY (HGF 8264B): Запросить цену
No wire harness attached...
8264		HGF 8264A	Датчик положения MGHA, B7VA	Датчик положения MGHA, B7VA (HGF 8264A): Запросить цену
Разьём - СЕРЫЙ НА ПРОВОДКЕ.Размер разьёма - 29х25мм.Длина проводки - 500ММ.Контактов в разьёме - 10 (папа)...

8371
	Код	Наименование	Цена
8371		HGF 8371B	SWITCH, PRESSURE	SWITCH, PRESSURE (HGF 8371B): Запросить цену
Brown plug.Uses two of these on the main case.45.52mm long.Has step on threads...
8371		HGF 8371C	SWITCH, PRESSURE	SWITCH, PRESSURE (HGF 8371C): Запросить цену
Brown plug.Uses two of these on the main case.41.88mm long.No step on threads...
8371		HGF 8371A	Датчик давления 33PSI (ЧЁРНЫЙ) MGHA MDX	Датчик давления 33PSI (ЧЁРНЫЙ) MGHA MDX (HGF 8371A): Запросить цену
Разьём - ЧЁРНЫЙ.Высота разьёма - 18ММ.Оригинальный номер: 28600-P7Z-003.Проверен!..

8437
	Код	Наименование	Цена
8437		HGF 8437A	Соленоид TCC PWM (блок.)BAYA,BGHA,BYBA,B7WA,MAYA,MGHA 01-?	Соленоид TCC PWM (блок.)BAYA,BGHA,BYBA,B7WA,MAYA,MGHA 01-? (HGF 8437A): Запросить цену
Соленоидов - 1.Разьём - НА КОРПУСЕ (чёрный)Сопротивление - 5.7 ОМ.Отверстий - 4.Оригинальный номер: 28250-P7W-003...

9283
	Код	Наименование	Цена
9283		HGF 9283B	SENSOR, SPEED	SENSOR, SPEED (HGF 9283B): Запросить цену
Steel tip...
9283		HGF 9283A	Датчик оборотов вала вых. MGHA	Датчик оборотов вала вых. MGHA (HGF 9283A): Запросить цену
Длина датчика от крепежа - 45ММ.Диаметр - 19.8ММ.Сопротивление - ДАТЧИК ХОЛЛА (между крайними 8 КОМ)Разьём - НА КОРПУСЕ 25.3х16.8ММ.Контактов - 3 (плоских папа)...

Показано с 1 по 69 из 69 (всего 1 страниц)
