CASE CORE

Core Charge
Bolt holes for gasket surface = 17.
Thickness at case where counter shaft bearing rides = 20.5mm.
Counter shaft bearing = HGF 9486A, 75mm O.D. X 20.5mm Thick.
Bracket for warmer plate = Yes.
From top of case gasket surface to bottom
of differential bearing pocket where differential race rides = 2.23-56.7mm.
Has boss next to vent tube = No.
FWD or AWD = FWD.
Differential bearing race pocket for case side inside diameter is 81mm.

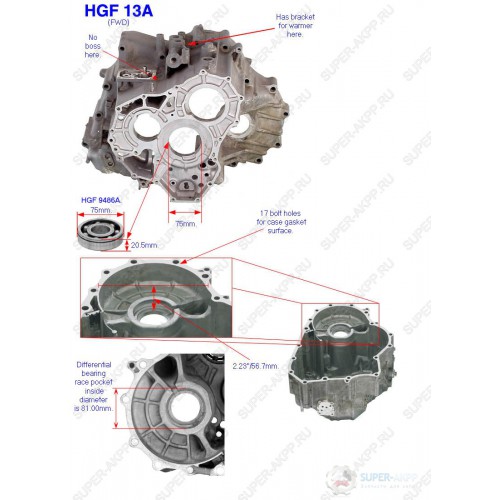

SEE PICTURE.
