CASE CORE

Core Charge
FWD.
Bolt holes for gasket surface = 18.
Thickness at case where counter shaft bearing rides = 21.46mm.
Counter shaft bearing = HGF 9486B, 81mm O.D. X 21.46mm Thick.
Bracket for warmer plate = No.
From top of case gasket surface to bottom
of differential bearing pocket where differential race rides = 2.82-71.8mm.
Has boss next to vent tube = Yes.
FWD or AWD = FWD.
Differential bearing race pocket for case side inside diameter is 85mm.

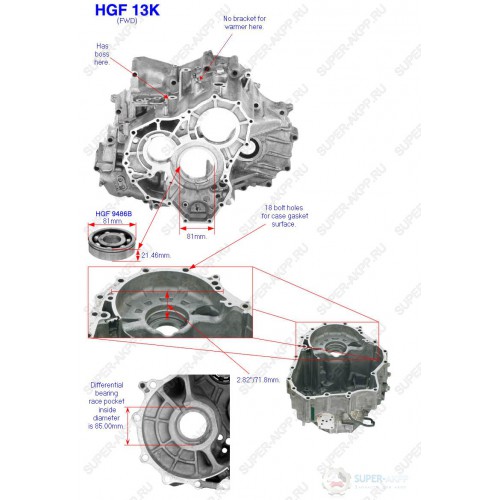

SEE PICTURE.
