SUPPORT, STATOR

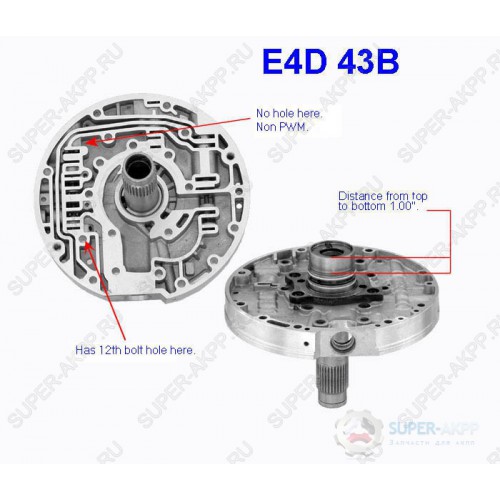

NON-PWM style (SEE PICTURES).
Has 12 bolts between stator and body.
Used with cast iron coast clutch drum.
Coast drum sealing rings 1.00 from end of stator shaft.
Bushing journal at rear of shaft.
For use with body casting # F8TP-7A105-AA.
