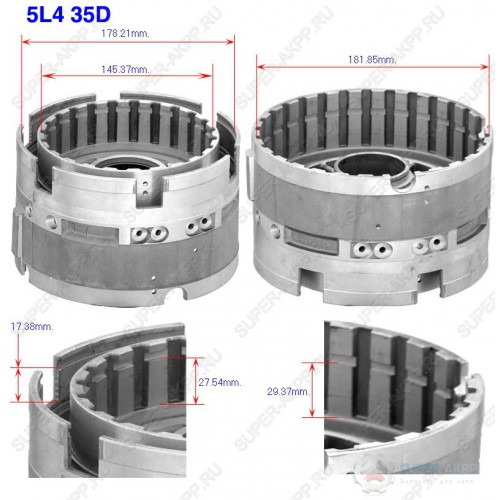

SUPPORT, CENTER

Side that has 1 clutch pack with 36 teeth:
-From bottom of snap ring groove to top of where cushion
plate rides is 29.37mm.
-The inside diameter of clutch drum is 181.85mm.

Side that has 2 clutch packs:
Small clutch pack with 24 teeth:
-From bottom of snap ring groove to top of where cushion
plate rides is 27.54mm.
-The inside diameter of clutch drum is 145.37mm.

Big clutch pack with 6 teeth:
-From bottom of snap ring groove to top of where cushion
plate rides is 17.38mm.
-The inside diameter of clutch drum is 178.21mm.
