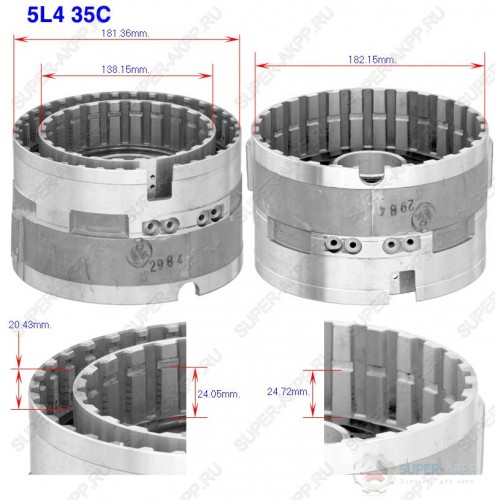

SUPPORT, CENTER

Side that has 1 clutch pack with 36 teeth:
-From bottom of snap ring groove to top of where cushion
plate rides is 24.72mm.
-The inside diameter of clutch drum is 182.15mm.

Side that has 2 clutch packs:
Small clutch pack with 24 teeth:
-From bottom of snap ring groove to top of where cushion
plate rides is 24.05mm.
-The inside diameter of clutch drum is 138.15mm.

Big clutch pack with 36 teeth:
-From bottom of snap ring groove to top of where cushion
plate rides is 20.43mm.
-The inside diameter of clutch drum is 181.36mm.
